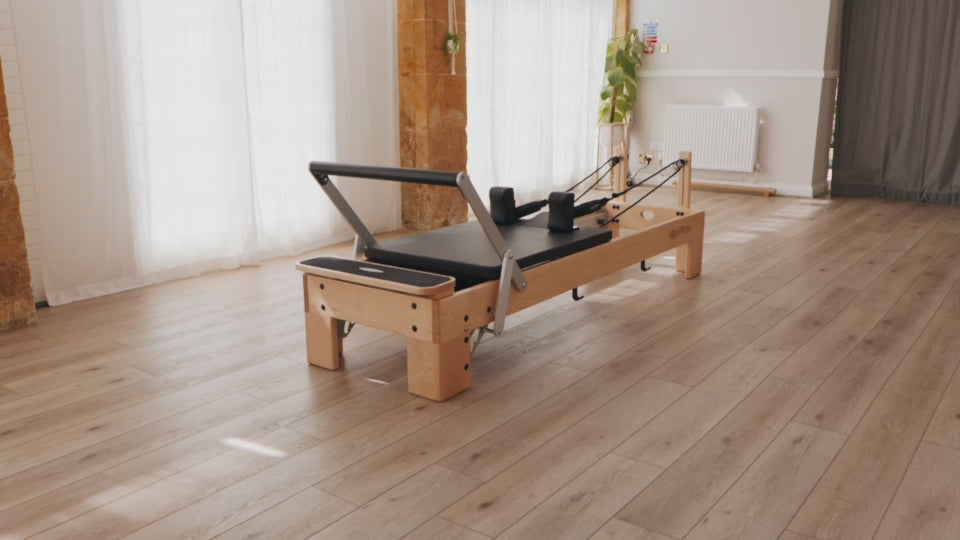

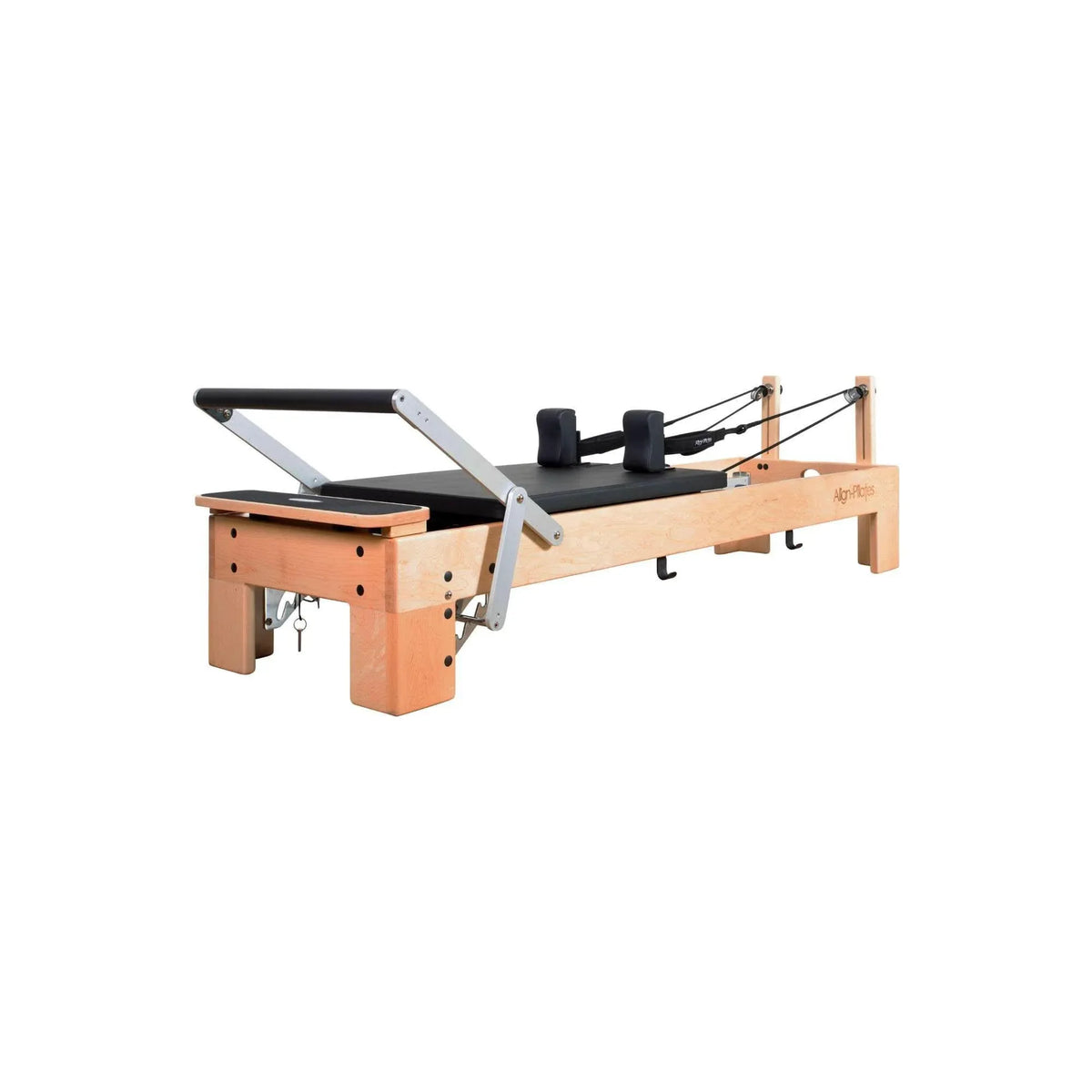

Experience Studio-Grade Precision and Timeless Elegance with the Align-Pilates M8-Pro Maple Reformer

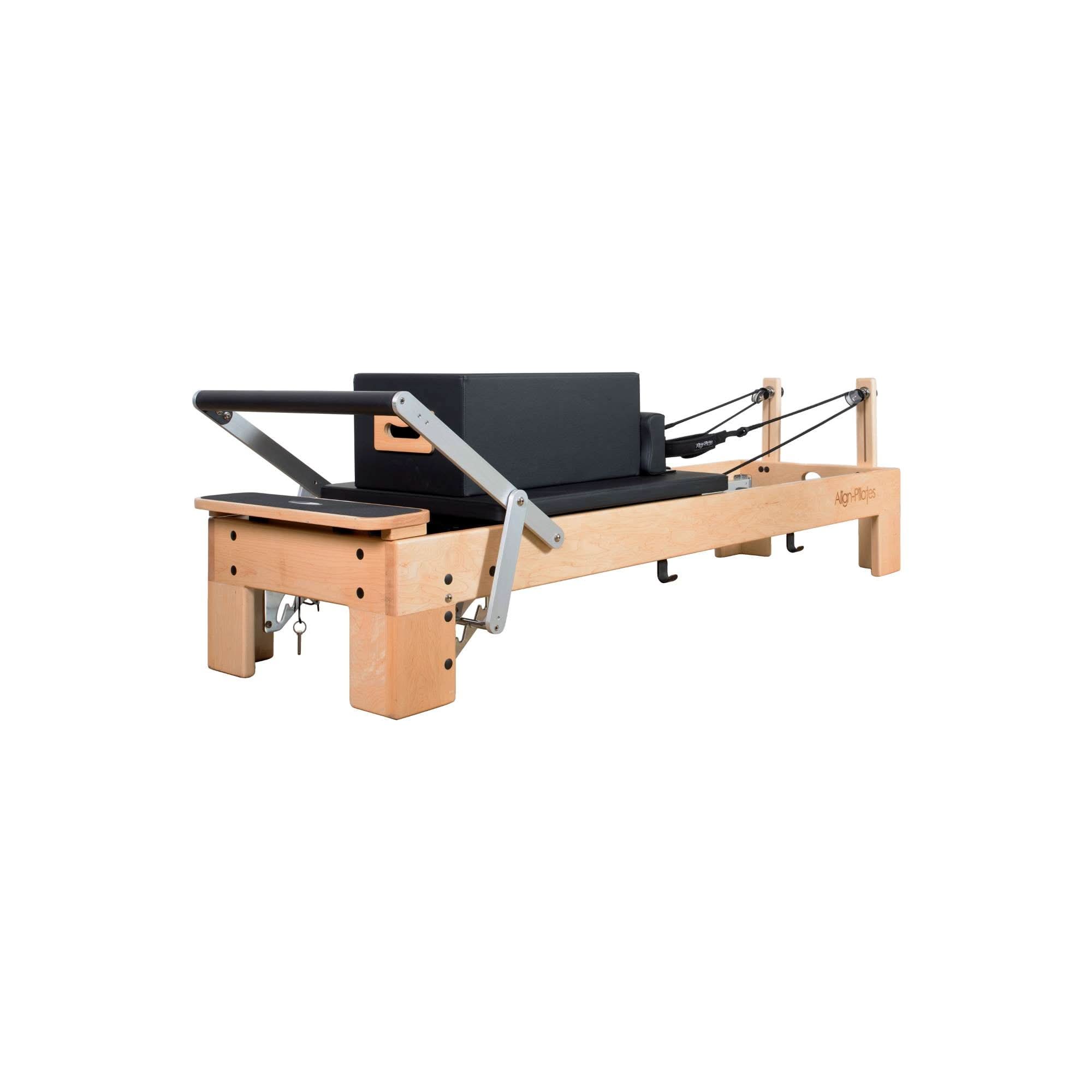

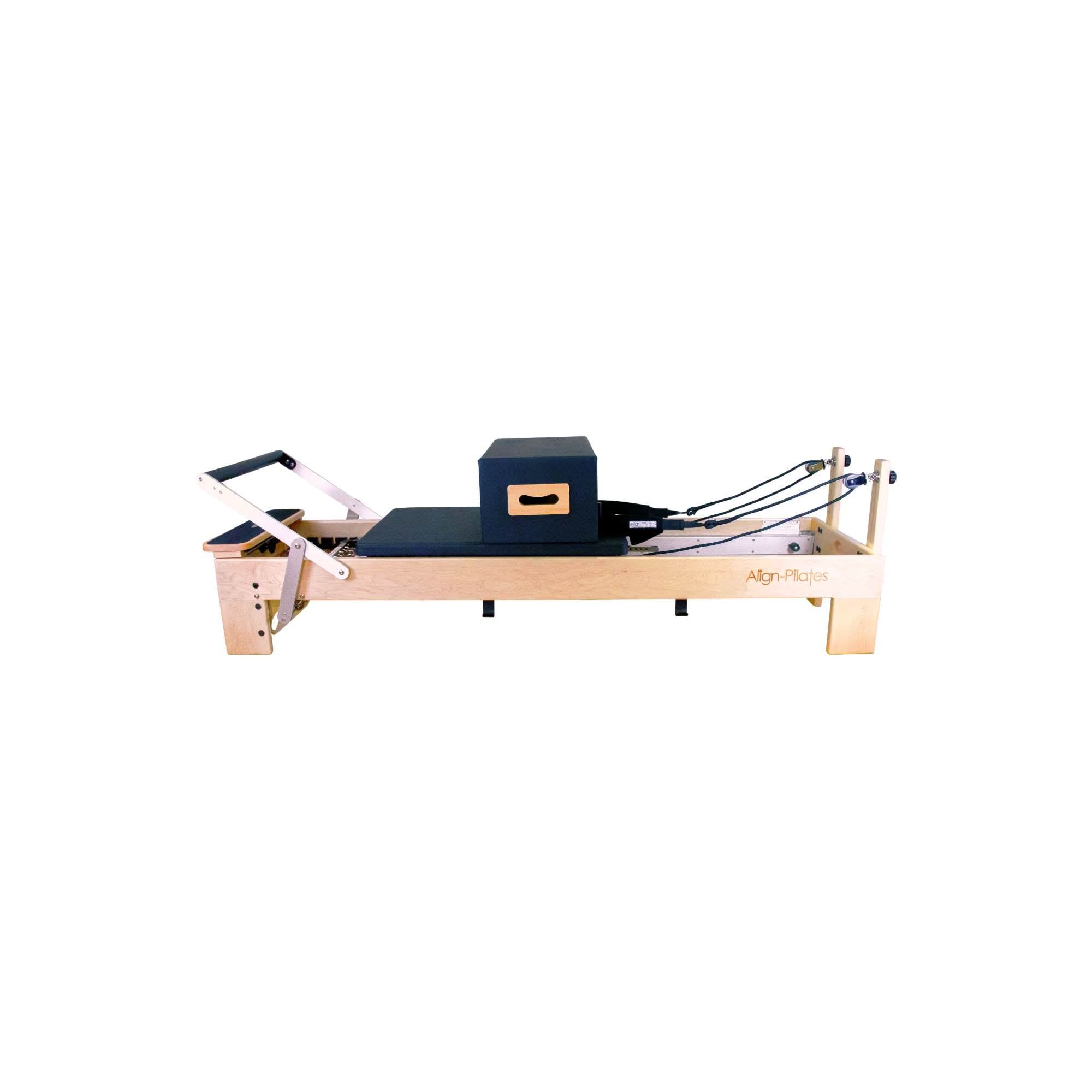

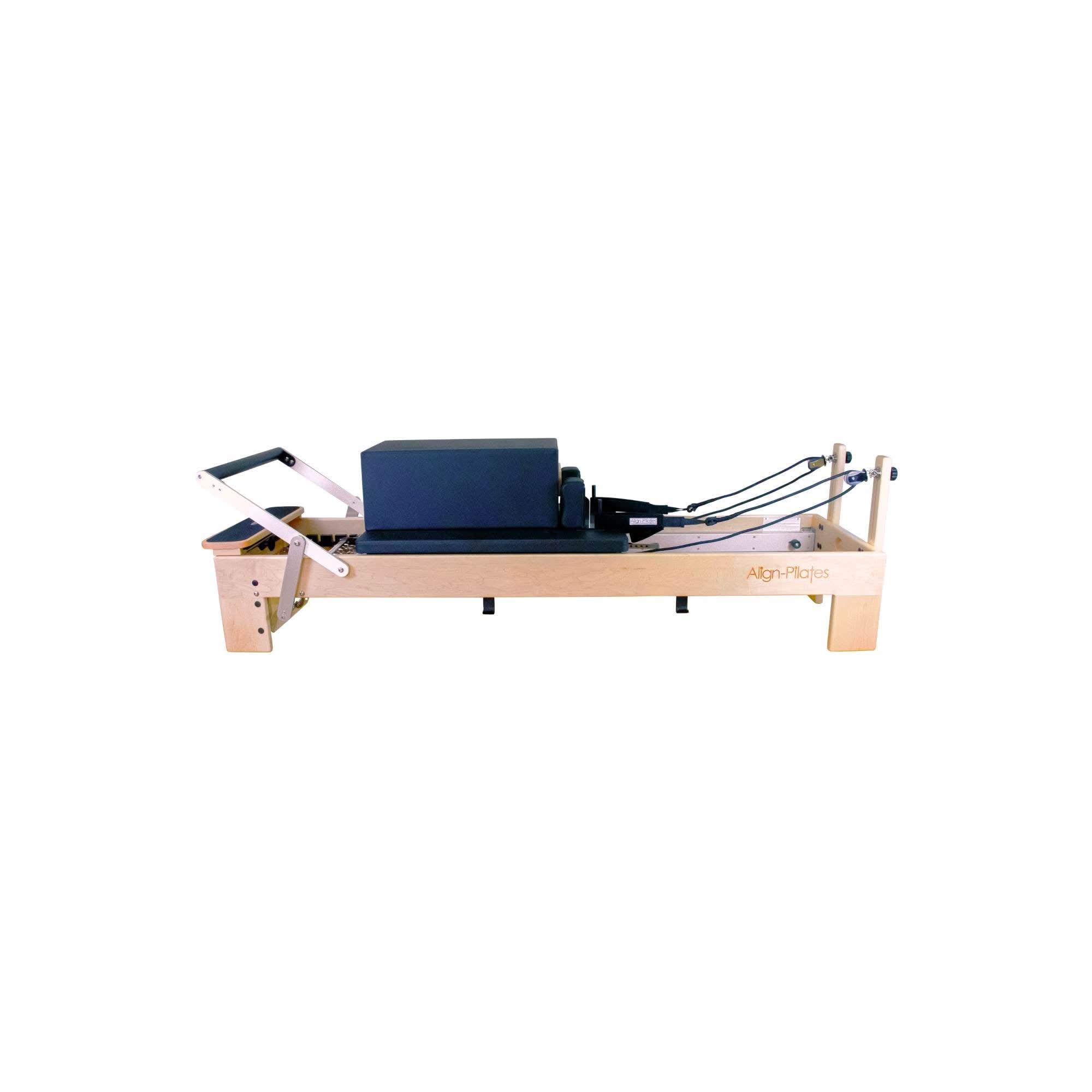

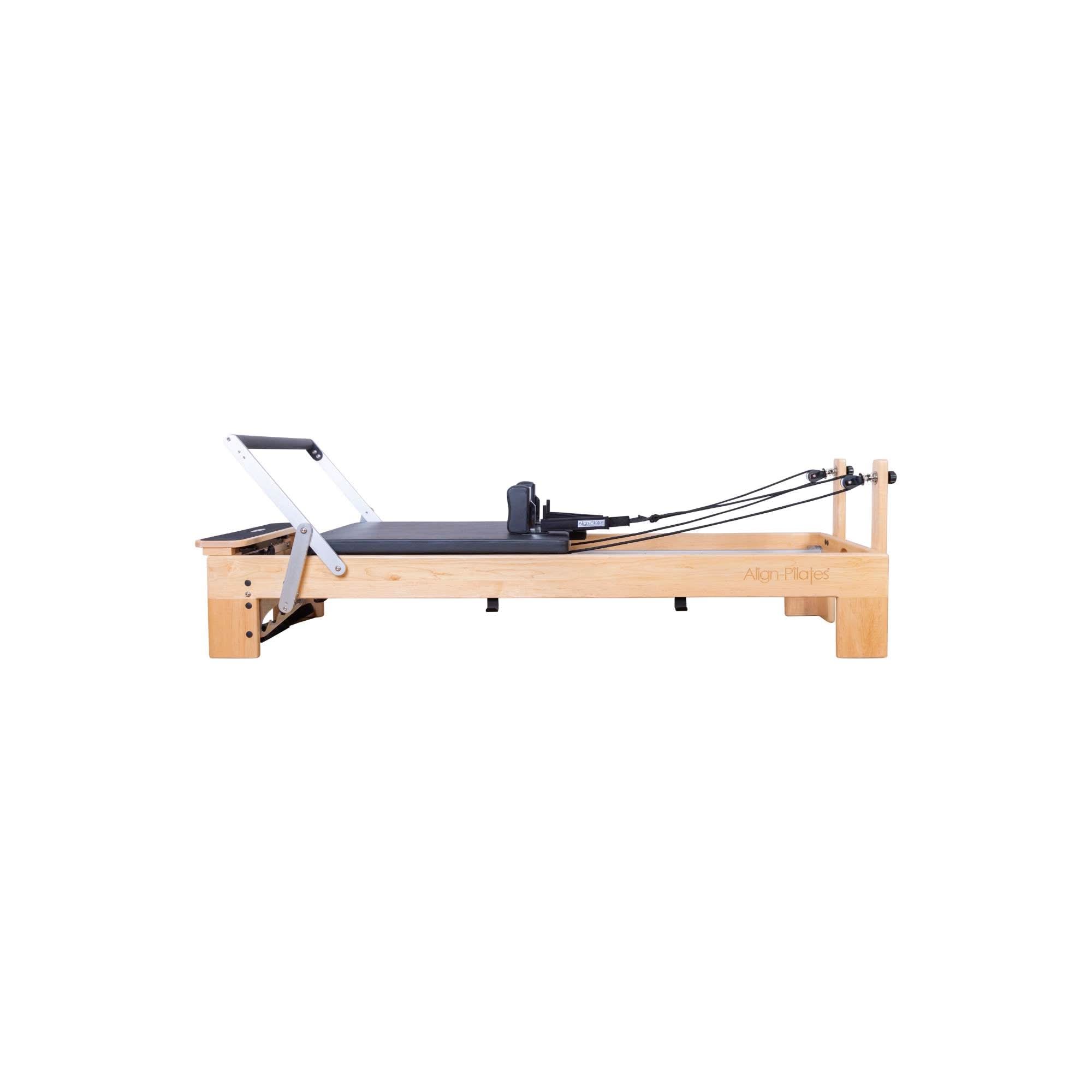

The Align-Pilates M8-Pro Maple Pilates Reformer with Pro Sitting Box masterfully combines the beauty of solid North American maple with cutting-edge performance features. Designed for both home studios and professional environments, this premium reformer delivers an exceptionally smooth, quiet, and versatile Pilates experience.
Max User Weight: 330 lbs (150 kg)
Ideal For: Home studios, boutique Pilates studios, and wellness spaces seeking professional performance with beautiful design.
What’s Included:
-
Pro Sitting Box
-
Adjustable silent foot strap
-
Removable maple standing platform
-
Pair of silent double-loop handles
-
5 nickel-plated music wire springs (2 Light, 2 Medium, 1 Strong)
-
Gondola Pole storage hooks
Compatible accessories (sold separately): Jump Board, Platform Extender/Mattress Converter, Half Cadillac, Gondola Pole, and more.
Align-Pilates Limited Lifetime Warranty (for original owner, light commercial use up to 27.5 hours/week) applies — full details available on the product page or upon request.
Elevate your Pilates practice with equipment trusted by professionals for its engineering excellence, durability, and refined performance.
Performance, Comfort & Precision
-

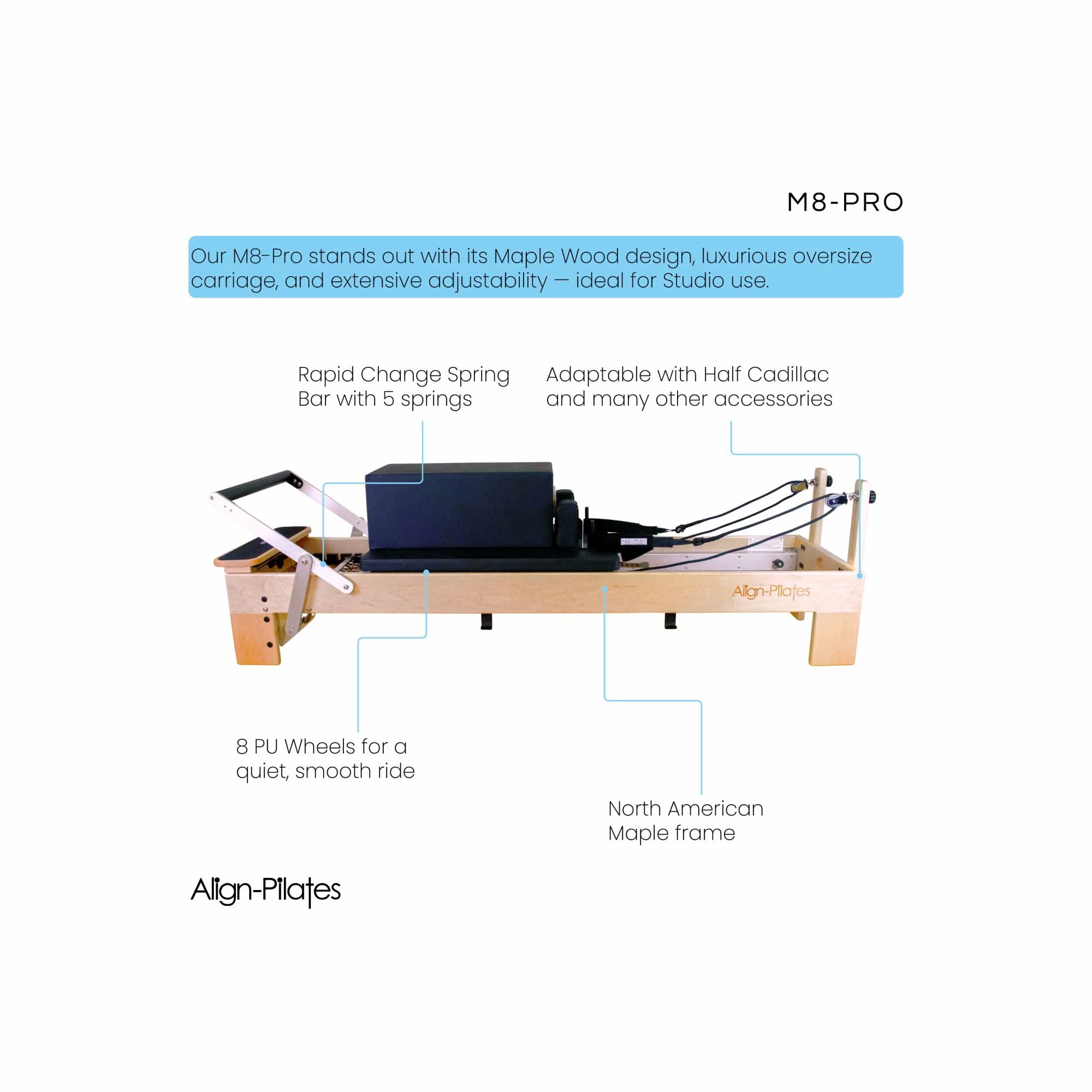

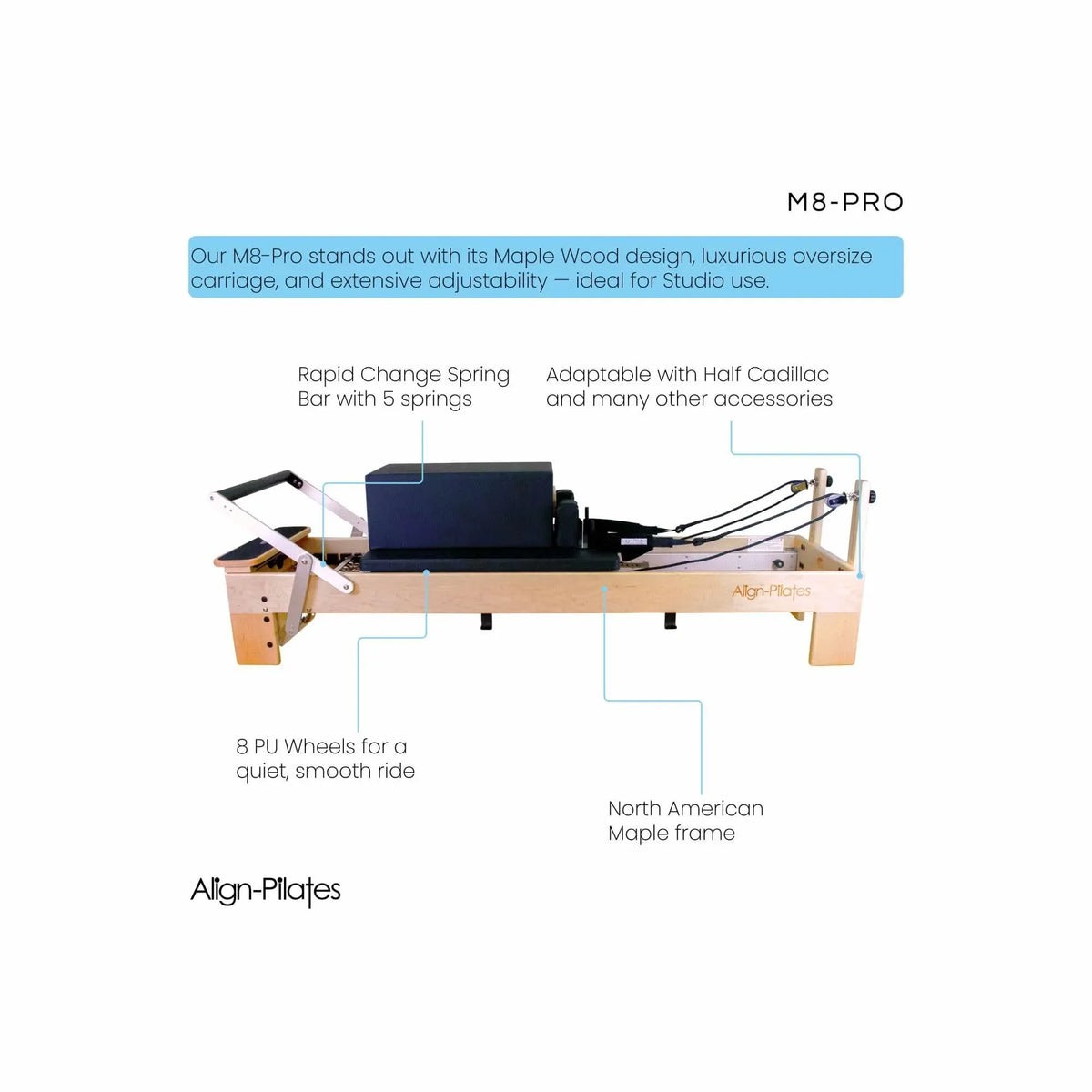

Patent-Pending Rapid Change (RC) Spring Bar — Adjust springs in one single hand motion without repositioning carriage stoppers. Perfect for seamless transitions in solo or group classes.
-
Ultra-Smooth 8-Wheel Carriage System — Enjoy 104 cm (41 inches) of silent, maintenance-free travel on precision aluminum runners.
-
Luxurious Oversized Carriage — Extra-wide design (93 cm x 66 cm) comfortably accommodates a wide range of body sizes and movement styles.
-
Premium Maple Construction — Durable, aesthetically stunning solid North American maple frame that adds warmth and elegance to any space.
-
Included Pro Sitting Box & Foot Strap — Unique to the M8-Pro for expanded exercise options like seated arm work and rehab-focused movements.
-
Fully Customizable Comfort — 3-position adjustable headrest, removable & lockable off-centered shoulder rests (2 width options), 4-position lockable footbar (including flat), and combined T-Bar/Pro-Rope adjusters for simultaneous rope length changes.
Whether you're a Pilates enthusiast, instructor, or studio owner, the M8-Pro supports classical, contemporary, athletic, and rehabilitative workouts with unmatched quality and ease.
|
Feature |
Details |
|
Frame Material |
Solid North American Maple Wood |
|
Runners |
Precision aluminum with 8 PU wheels |
|
Carriage Dimensions |
93 cm L x 66 cm W (approx. 37" x 26") |
|
Carriage Travel |
104 cm (41 inches) of smooth, silent travel |
|
Dimensions (Reformer) |
254 cm L x 76 cm W x 43 cm H (approx. 100" x 30" x 17") |
|
Product Weight |
80 kg (176–177 lbs) |
|
Max User Weight |
150 kg (330 lbs) |
|
Footbar |
4 lockable positions including flat |
|
Spring Bar |
Patent-pending Rapid Change (RC) system |
|
Springs |
5 nickel-plated music wire (2 Light, 2 Medium, 1 Strong) |
|
Shoulder Rests |
Removable, lockable, off-centered (2 width options) |
|
Headrest |
Adjustable, 3 positions |
|
Rope Adjustment |
Combined T-Bar and Pro-Rope system (simultaneous adjustment) |
|
Usage |
Home & Light Commercial (studio) |
|
Standards |
Independently tested to EN ISO 20957-1:2013 |
|
Included Accessories |
Pro Sitting Box, Foot Strap, Removable Standing Platform, Silent Handles & Springs |
Align-Pilates™ Limited Lifetime Warranty
Terms of Limited Lifetime Warranty
Align-Pilates offers a Limited Lifetime Warranty to the original owner, from the date of purchase, upon presentation of the original invoice. This warranty is for light commercial use, allowing a maximum of 27.5 hours per week of usage. Align-Pilates will repair or replace any mechanical parts that malfunction due to defects in materials or workmanship during the warranty period.
Exclusions:
The warranty does not cover:
- Normal wear and tear
- Damage due to negligence, misuse, abuse, or modification
- Scratches on the finish, tears, or indents in the upholstery
- Shipping charges, customs fees, or installation costs for repaired/replacement parts
Important:
- The warranty will be voided if springs are not replaced as specified or if safety, maintenance, and usage instructions are not followed.
- It is also void if the equipment is used for any purpose other than Pilates exercises or if subjected to unauthorized modifications.
Align-Pilates may require your product to be returned for inspection before providing a replacement or repair. Repaired or replaced parts are covered for the remainder of the original warranty period.
Duration of Limited Warranty:
-
Metal Frames & Welded Components
10 years -
Wooden Frames, Spring Bar & Foot Bar Mechanisms
5 years (Note: Wooden frames should not be placed near convection radiators or air conditioning units.) -
Other Non-Wear and Tear Components
2 years -
Ropes, Straps, Spring Clips, Handles, Wheels, Foot Straps, and More
1 year -
Springs
2 years or 3,000 hours
Springs should be replaced after 3,000 hours or 2 years, whichever comes first. A 5% decrease in spring power per 1,500 hours of use is acceptable per international standards. -
Upholstery
90-day warranty
If upholstery fails due to normal use within 90 days, it will be replaced. This warranty does not cover cuts, stains, or damages caused by unreasonable use, such as wearing jewelry or inappropriate clothing.
What is included with my M8-Pro Pilates Reformer?
The M8-Pro includes the Align-Pilates Pro Sitting Box. It also includes all springs, ropes, and handles to enable you to practice immediately after the assembly. All of our commercial reformers also come with a free foot strap.
What is the Rapid Change (RC) Spring Bar and how does it differ from a normal spring bar?
The Rapid Change (RC) Spring Bar is the newest patent-pending spring bar from Align-Pilates. A traditional spring bar is used in conjunction with a separate carriage stopper, which can take up to 12 actions to change on a 5-spring reformer. The RC Spring Bar features integral carriage stoppers and is adjusted with the springs attached, so it can be moved with one hand in a single action, saving 3 to 11 additional actions every time you move the spring bar. The RC spring bar is a game-changer in group reformer classes. It also prevents incorrect carriage stopper positions and the possibility of leaving your springs in a stressed position, which will reduce their life and performance. Watch the video here!
Which accessories are compatible with my M8-Pro Pilates Reformer?
- Jump Board
- Platform Extender
- Mat Converter
- Curved Sitting Box
- 60” Gondola Pole
- 32” Roll Up Bar (wood or metal)
- Neck Pillow
- Plank Handles

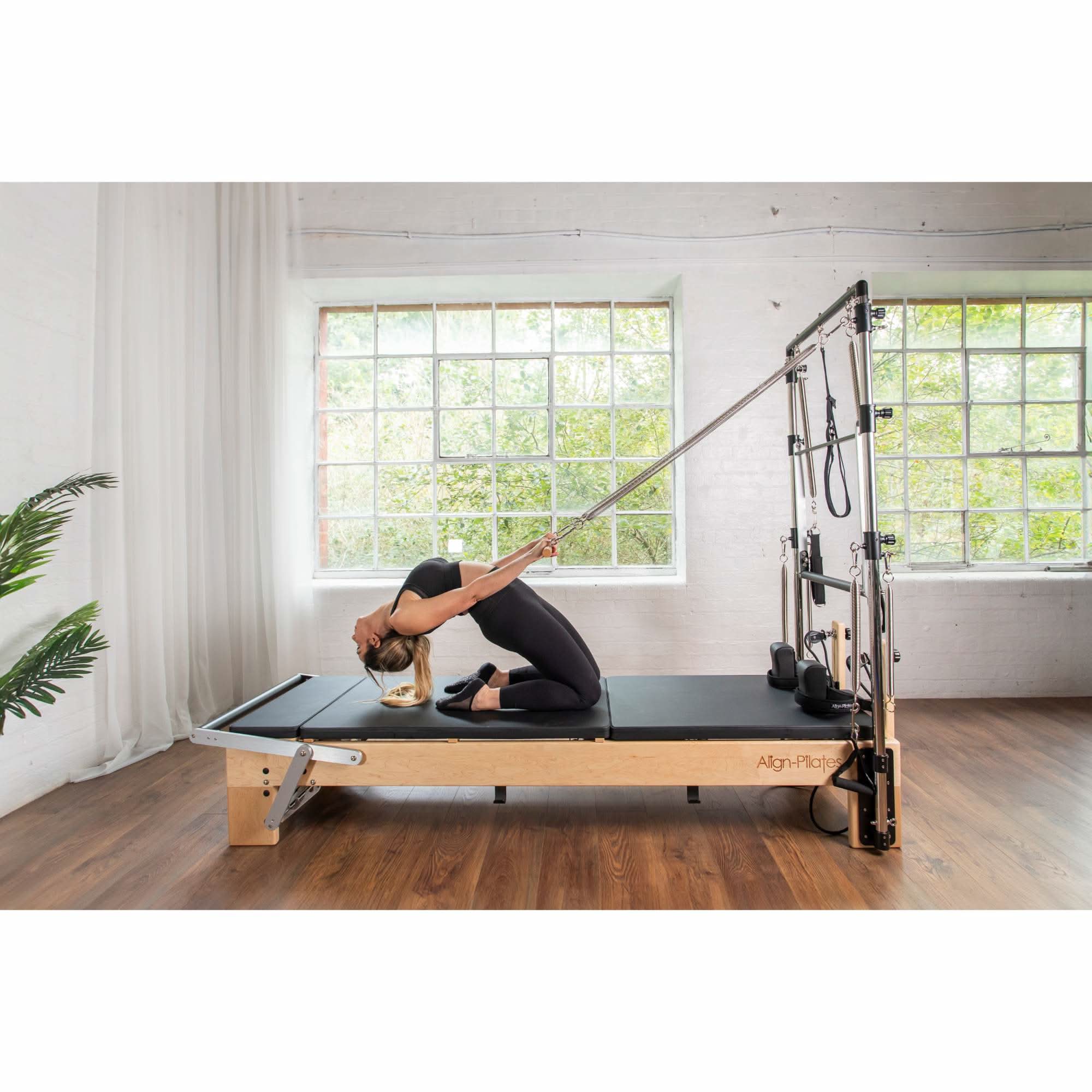

- Half Cadillac
- Floor Protection Mat

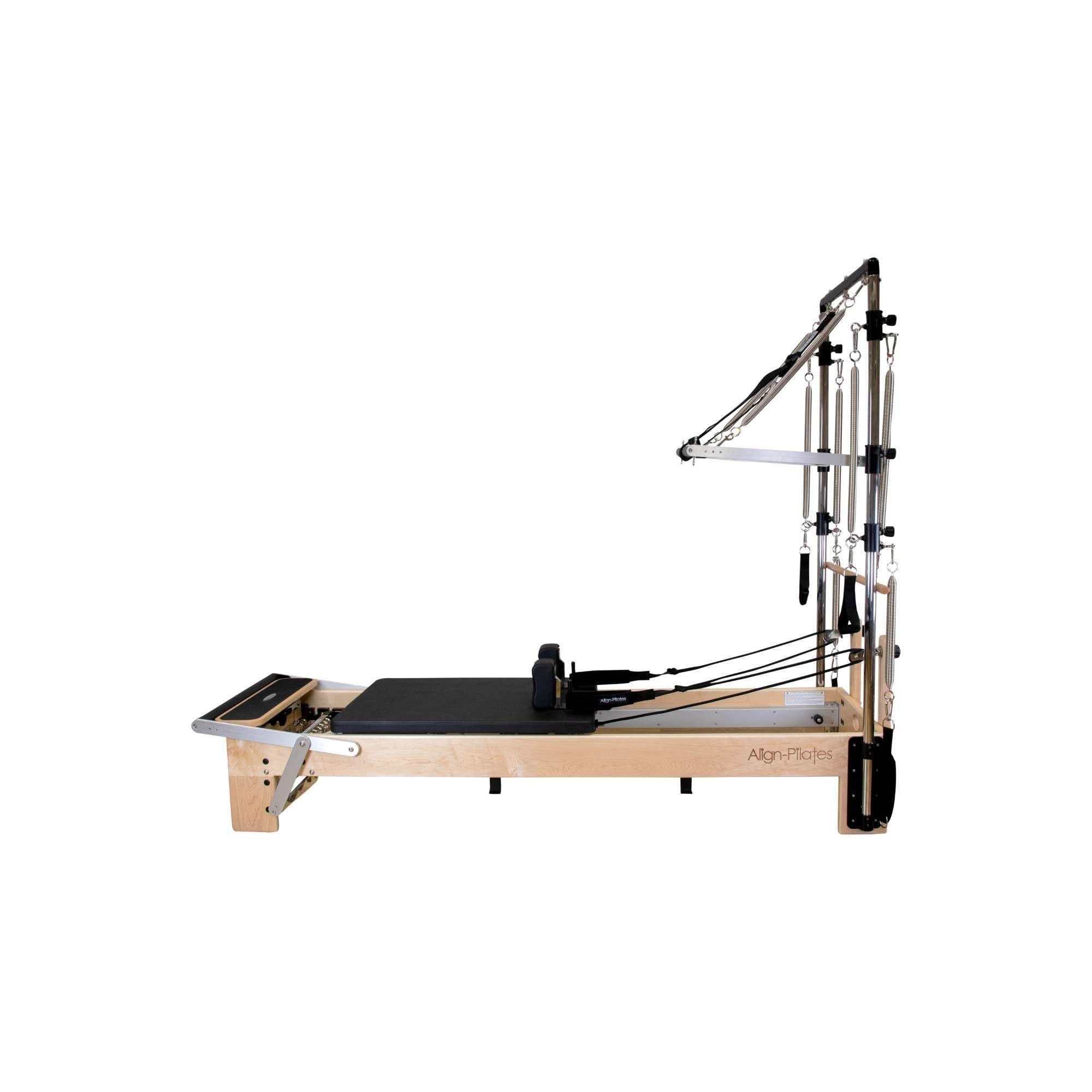

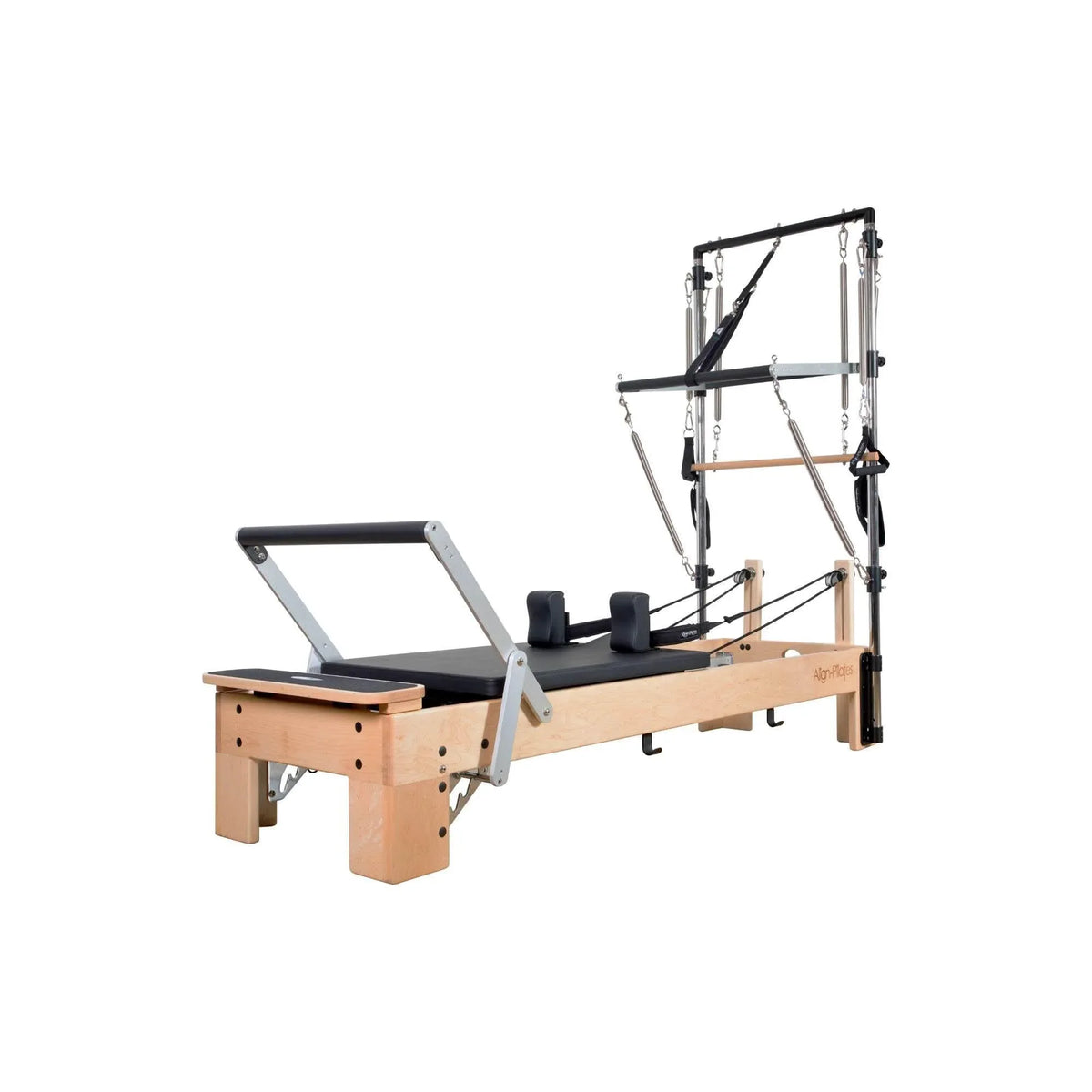

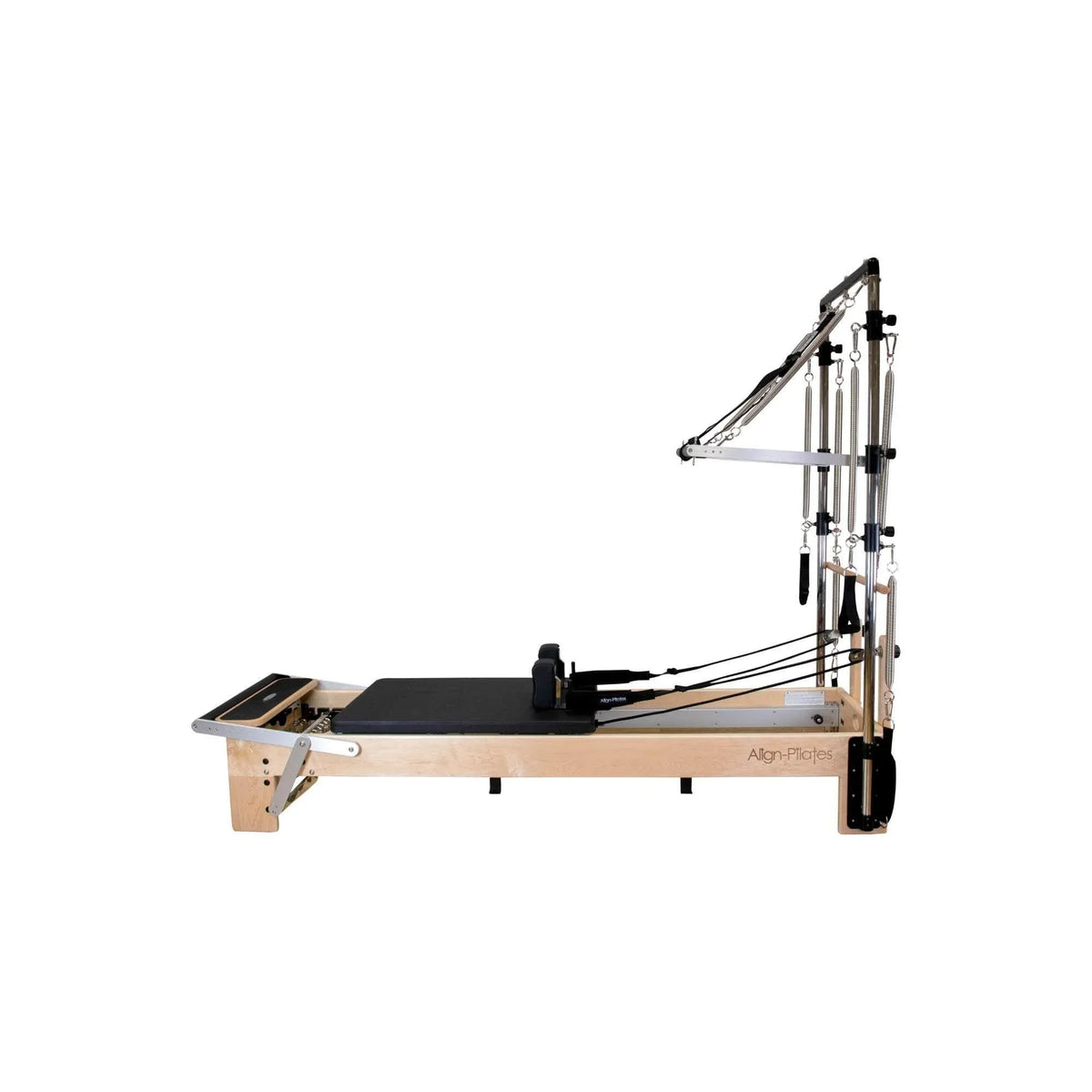

Do you offer Half Cadillac bundles with the M8-Pro Pilates Reformer?
The Half Cadillac (with the bracket) is available as an add-on.
What exercises can I do on the M8-Pro Pilates Reformer?
Subscribe to this YouTube channel to find instructional exercise videos.
What are the dimensions of the M8-Pro Pilates Reformer?
Dimensions: Reformer: 98" (L) x 30" (W) x 17" (H)
Weight: 177 lbs
What is the maximum user weight capacity for the M8-Pro Pilates Reformer?
Maximum user weight capacity is 330.5 lbs
How will my reformer be delivered?
Reformers are typically delivered on a pallet to your driveway or the front of the building. The driver will unload the reformer for you, then you will need to take it into your home or studio from there. Some assembly is required, but you can find detailed instructions in both the User Manual and on this YouTube channel. As a standard practice, suitable access for van or truck deliveries is necessary.
